The MACD is a widely used indicator that simplifies the analysis of momentum and trend direction in financial markets. By combining moving averages, it helps traders identify potential reversals, confirm trends, and time their trades more effectively.
This article explains the MACD indicator, how to read it, and how to use it in your strategies.
The MACD uses moving averages to track momentum and trend direction in markets.
It helps traders identify potential reversals, bullish or bearish trends, and entry/exit points.
Strategies like crossovers and divergences are effective for leveraging MACD signals.
Register for a free demo and refine your trading strategies.
The MACD (Moving Average Convergence Divergence) is a momentum and trend-following indicator used in technical analysis.
It was developed to identify changes in the strength, direction, momentum, and duration of a trend in a market.
At its core, the MACD is a combination of two moving averages, typically:
the 12-period EMA (Exponential Moving Average)
and the 26-period EMA
These moving averages fluctuate based on price movement, helping traders spot potential buy or sell signals.
Why is the MACD so widely used? It’s because it’s such a versatile indicator. For beginners, it’s a great starting point to understand market direction, offering a straightforward approach to identifying potential opportunities.
Advanced traders, on the other hand, often incorporate the MACD into more complex trading strategies, leveraging its ability to highlight subtle shifts in momentum or confirm signals from other indicators.
It’s particularly effective for spotting when momentum is shifting, which can indicate a potential trend reversal.
The MACD is calculated using three key components:

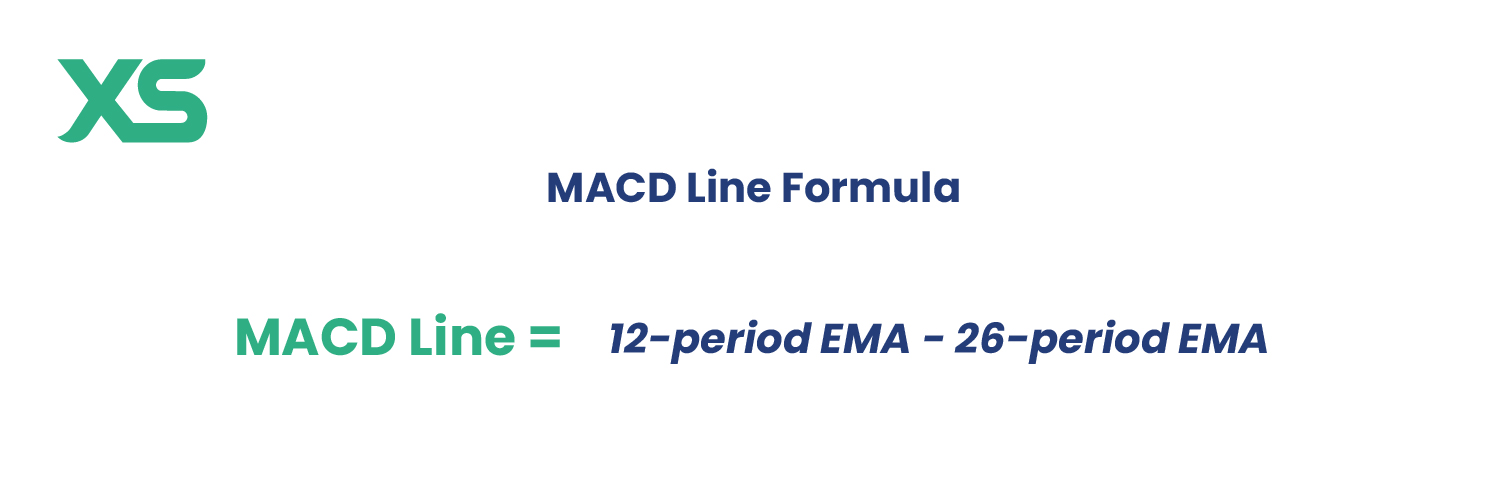

First, calculate the MACD Line. To calculate it, subtract the 26-period EMA (Exponential Moving Average) from the 12-period EMA. The formula MACD line formula is:
Next, calculate the signal line. So, calculate the 9-period EMA of the MACD line. The Signal Line helps smooth the MACD and identifies buy or sell signals when crossovers occur.

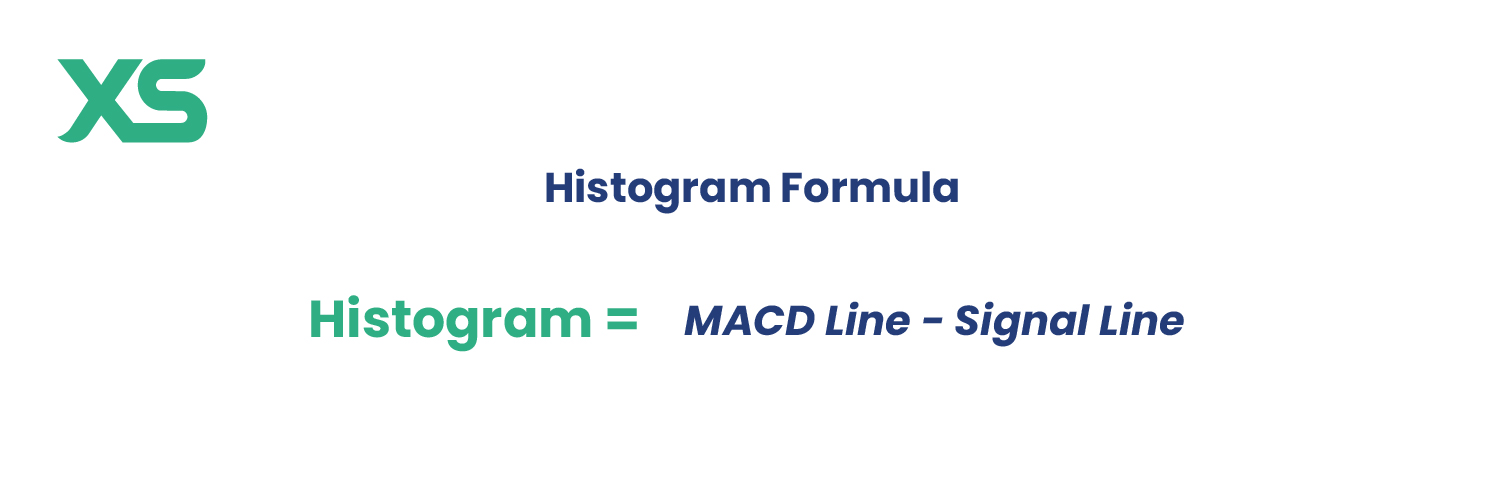

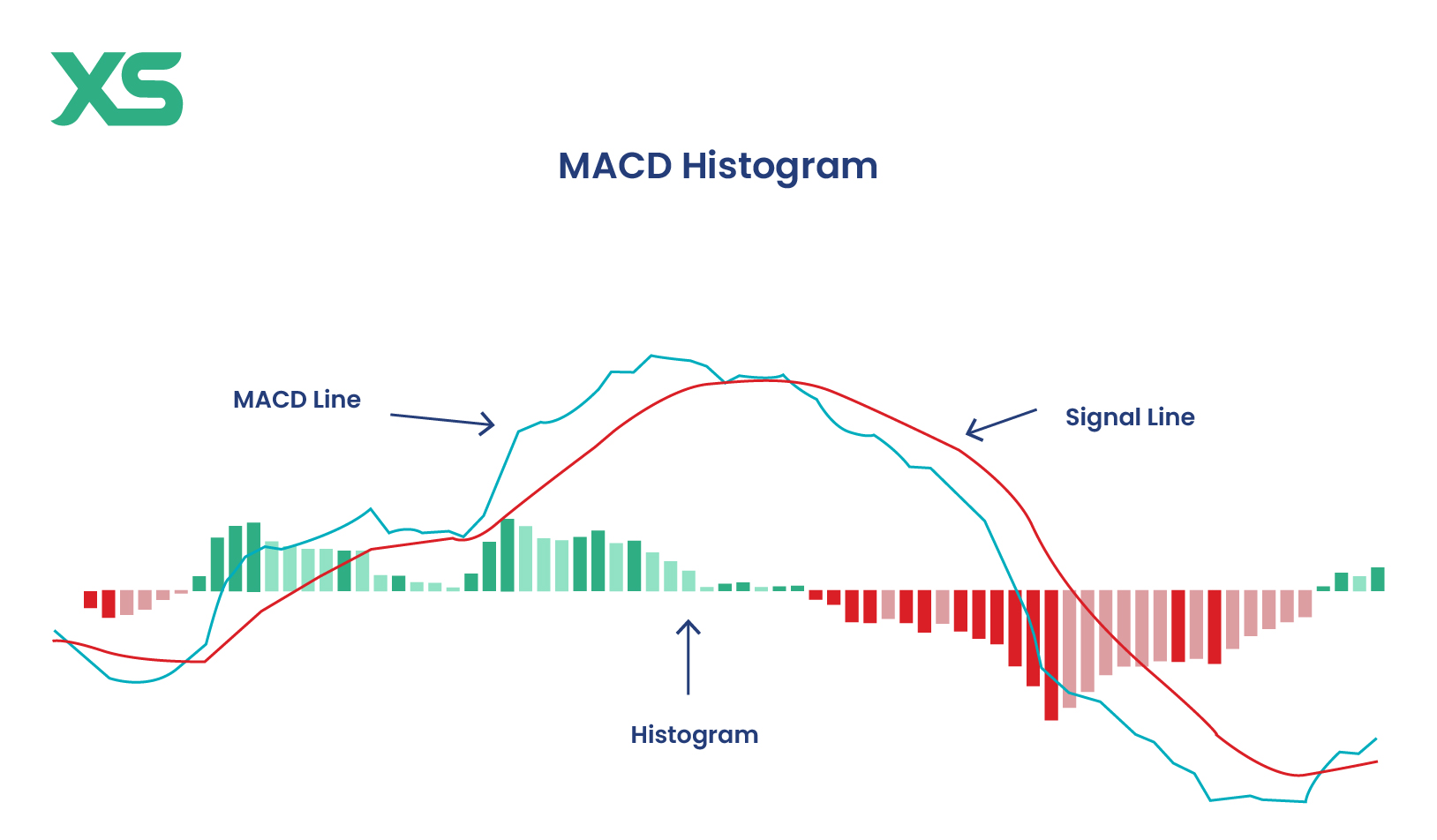

Lastly, to calculate the histogram, subtract the signal line from the MACD Line. So, the histogram formula is:
The histogram visually represents the difference between the two lines, showing momentum changes.
Reading the MACD indicator involves understanding three key elements:

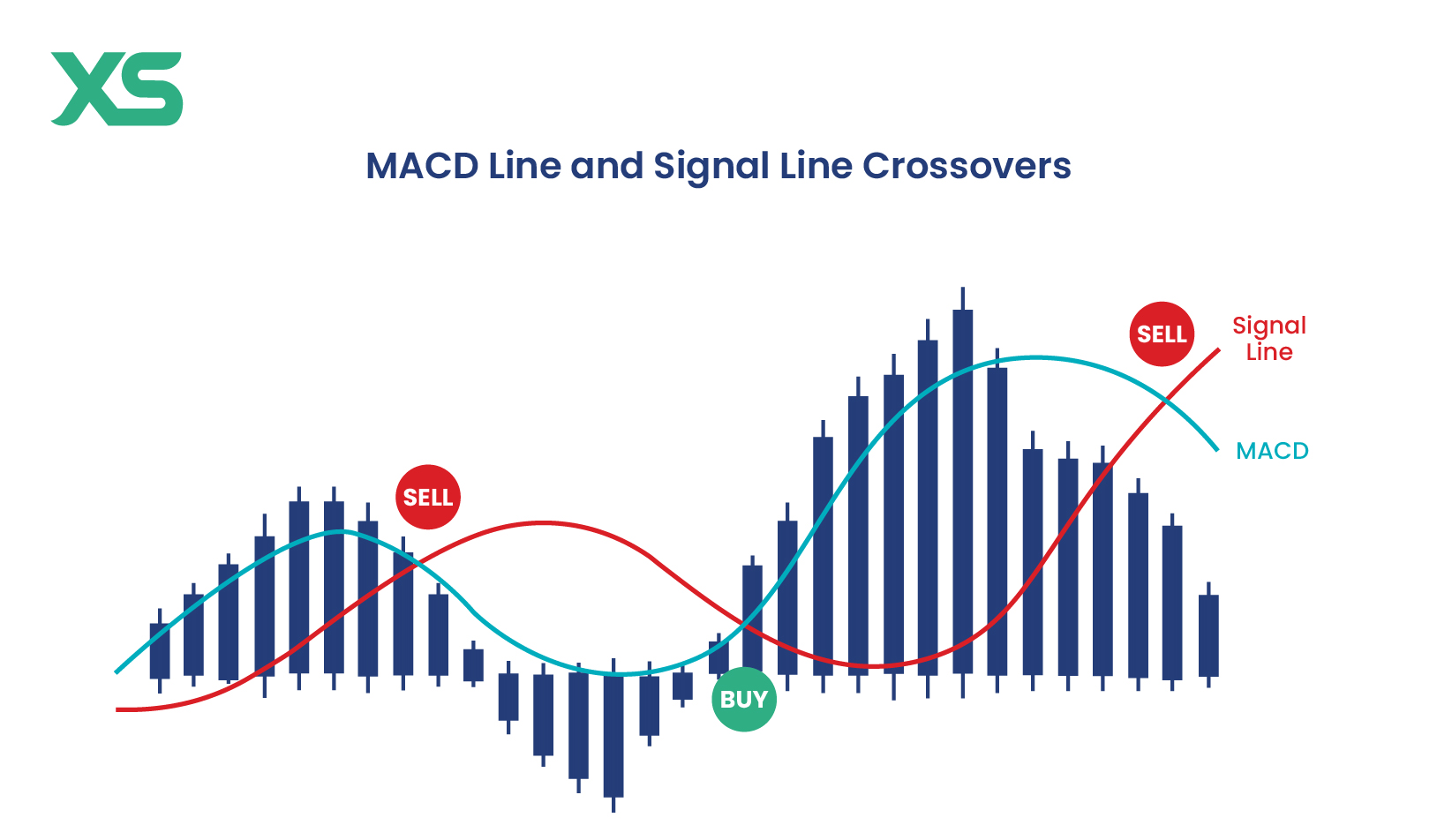

When the MACD line crosses above the signal line, it’s a buy signal.
When it crosses below, it’s a sell signal.
Positive bars suggest bullish momentum.
Negative bars indicate bearish momentum.

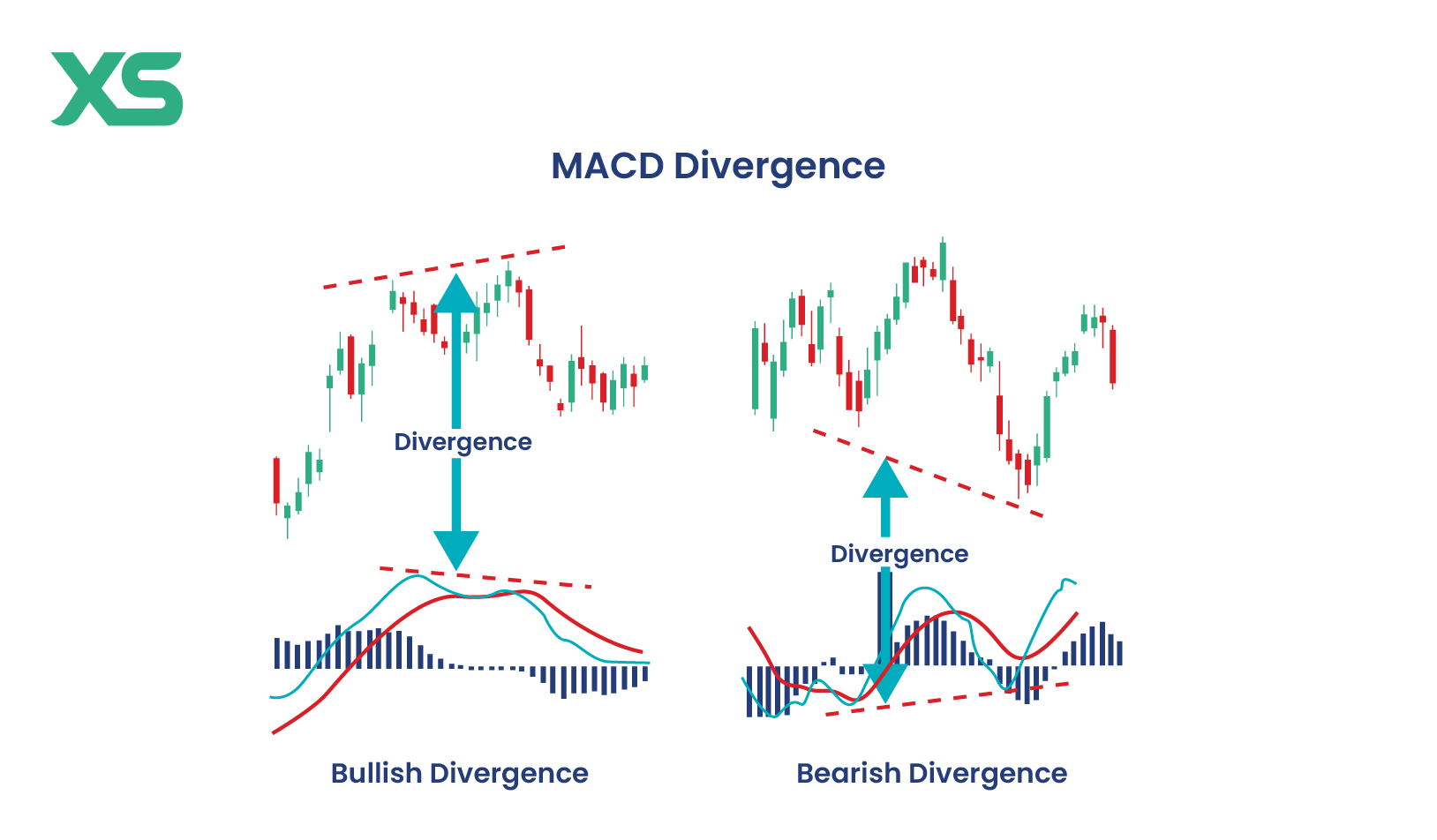

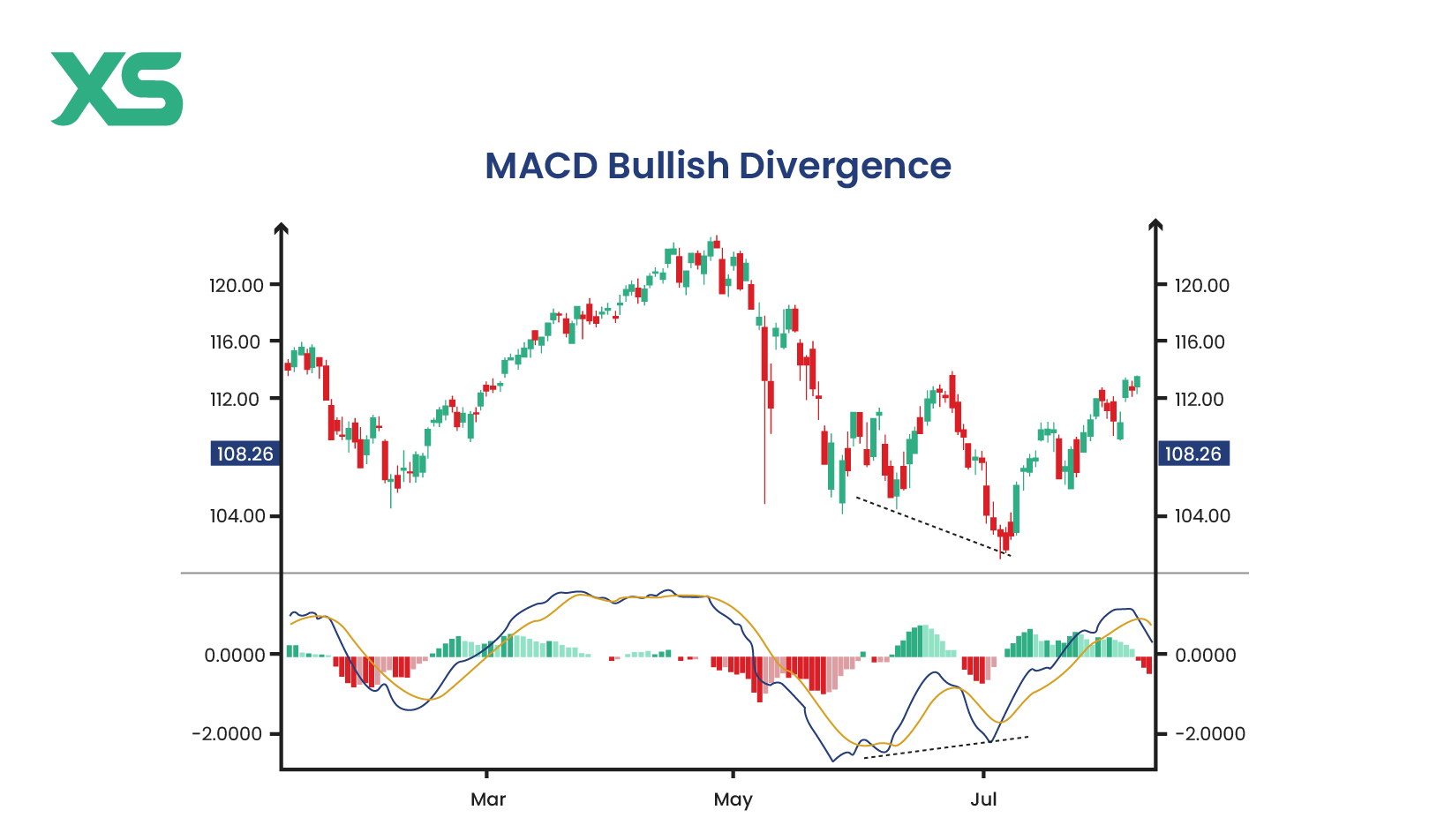

Bullish Divergence: Price makes a lower low while the MACD makes a higher low.
Bearish Divergence: Price makes a higher high while the MACD makes a lower high.
Understanding how the MACD compares to other technical indicators helps traders use it more effectively.

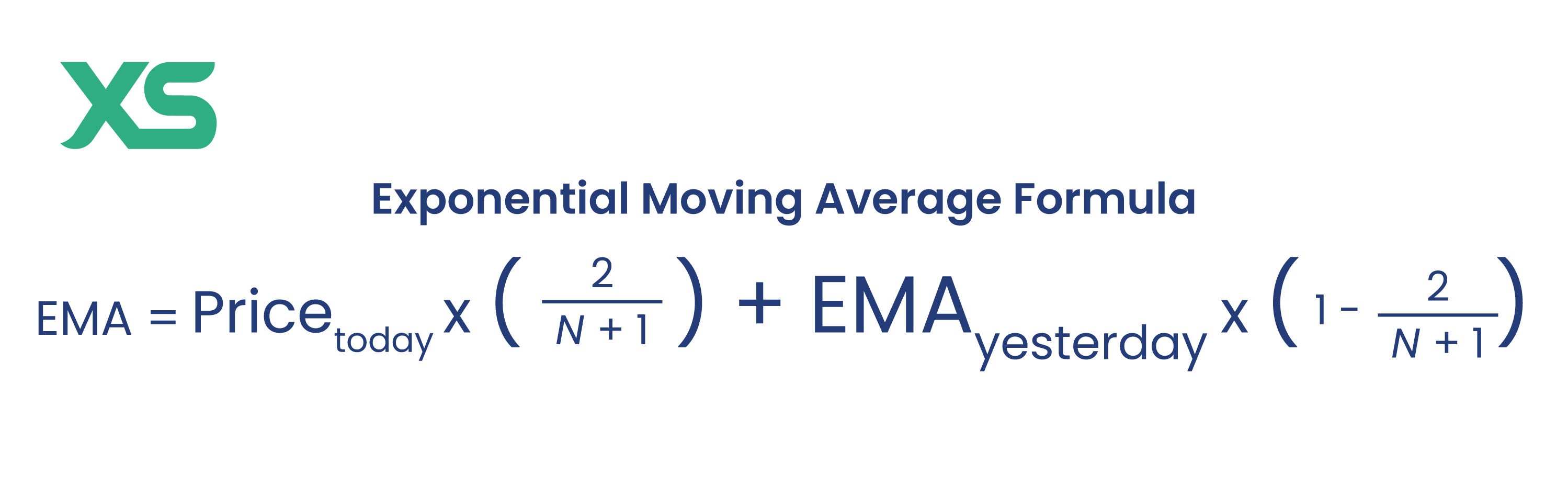

The exponential moving average focuses solely on smoothing price data over a specific period to track the trend direction of an asset. It’s simple and provides a clear snapshot of whether the price is trending up or down.
The MACD, on the other hand, takes this concept a step further. By combining two EMAs (usually the 12-period and 26-period EMAs).
So, in essence, the MACD builds upon the EMA, offering deeper insights into market behavior.
MACD: Best for identifying momentum shifts and trend direction using the interaction of two EMAs.
EMA: Best for smoothing price data to observe general price trends over a specific period.

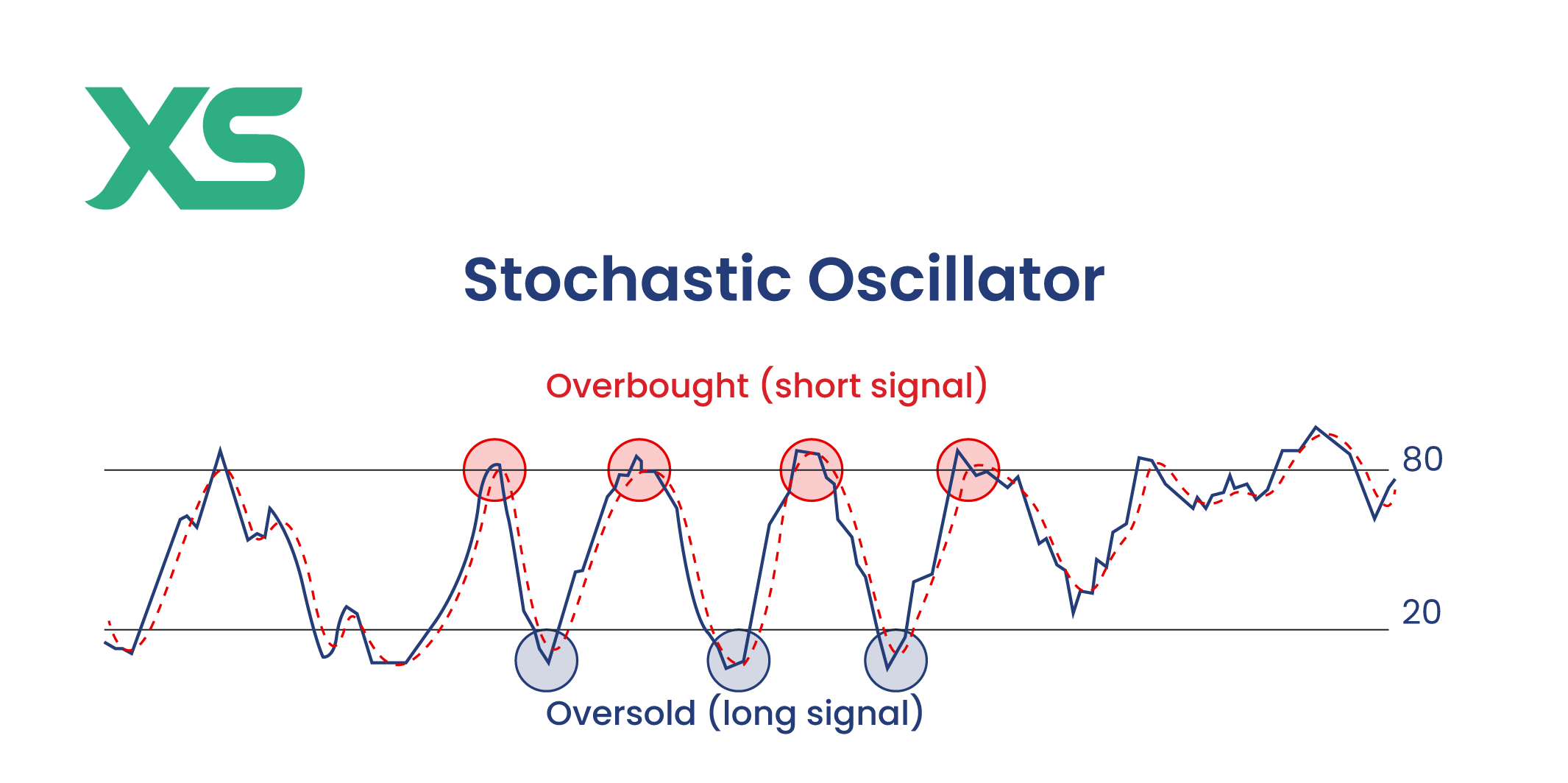

The Stochastic Oscillator is an indicator that measures whether an asset is overbought or oversold, focusing on price relative to recent highs and lows.
Its primary goal is to identify potential reversal points by highlighting extremes in market sentiment.
On the other hand, the MACD doesn’t focus on overbought or oversold levels. Instead, it emphasizes momentum and the strength of a trend.
MACD: Best for analyzing momentum and the strength of a trend.
Stochastic Oscillator: Best for spotting overbought and oversold conditions in the market.
The Relative Strength Index (RSI) is another momentum-based indicator, but its focus lies on evaluating overbought or oversold conditions in the market.
By comparing the magnitude of recent price gains and losses, the RSI assigns a value between 0 and 100.
Traders often use this value to spot potential reversal points, with levels above 70 indicating overbought conditions and below 30 suggesting oversold conditions.
The MACD, however, assesses both momentum and trend direction by analyzing the interaction between two moving averages.
MACD: Best for tracking momentum and signaling potential trend reversals.
RSI: Best for measuring market extremes (overbought/oversold levels) to time entry and exit points.
As mentioned above, MACD is a versatile indicator that you can use in your trading strategies. Here are some ways to incorporate it in trading.
The MACD histogram is an essential tool for recognizing momentum shifts in the market. When the bars transition from negative to positive, it indicates growing bullish momentum, signaling a potential upward trend.
Conversely, when the bars shift from positive to negative, it reflects bearish momentum, often hinting at a downward trend.
Traders rely on these changes to time their trades effectively.

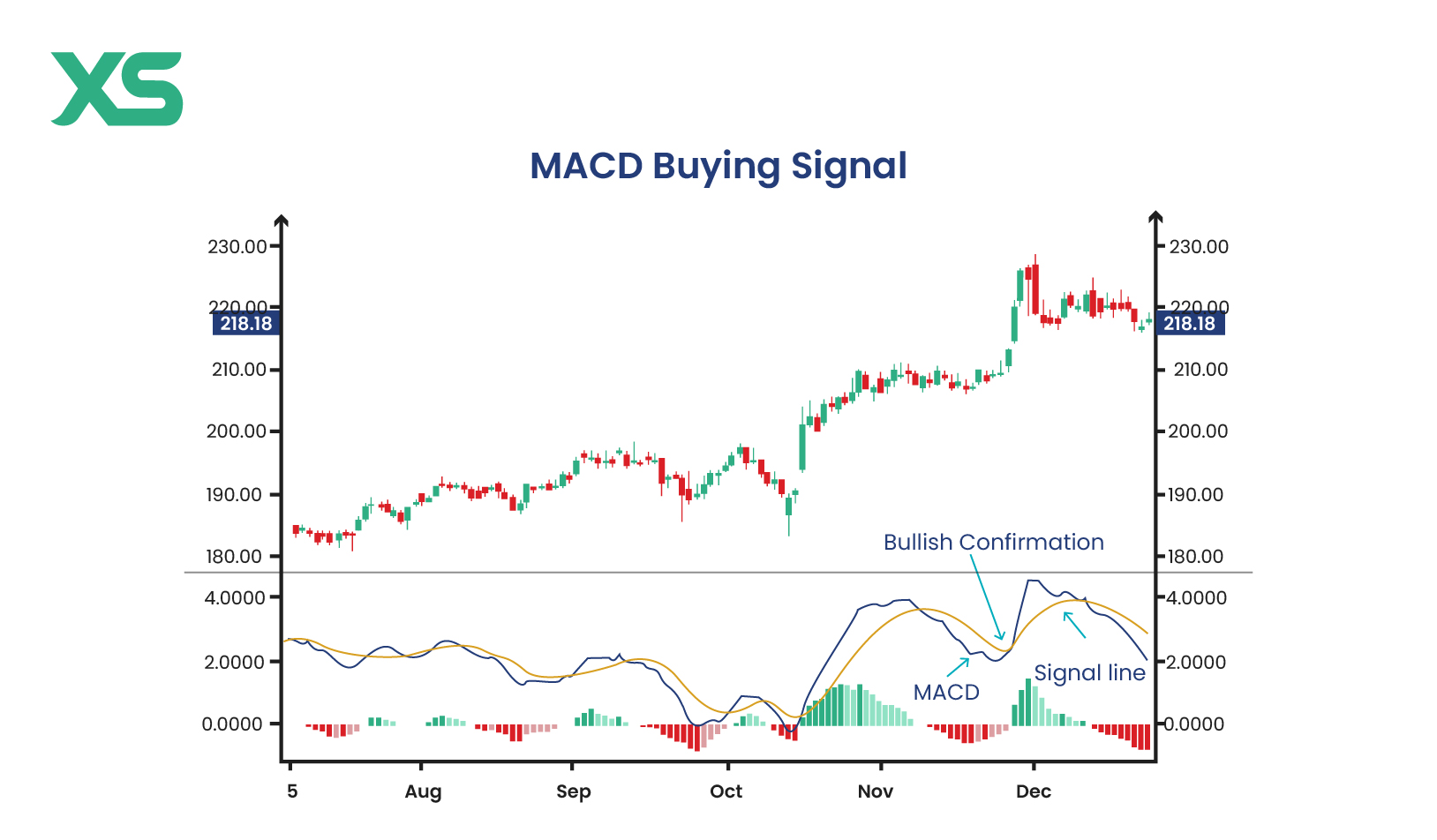

In bullish markets, the MACD is a reliable tool for confirming upward trends.
Traders often focus on crossovers where the MACD line rises above the signal line, along with positive histogram bars, which signal strengthening bullish momentum.
These indicators provide confidence to enter or stay in long positions.

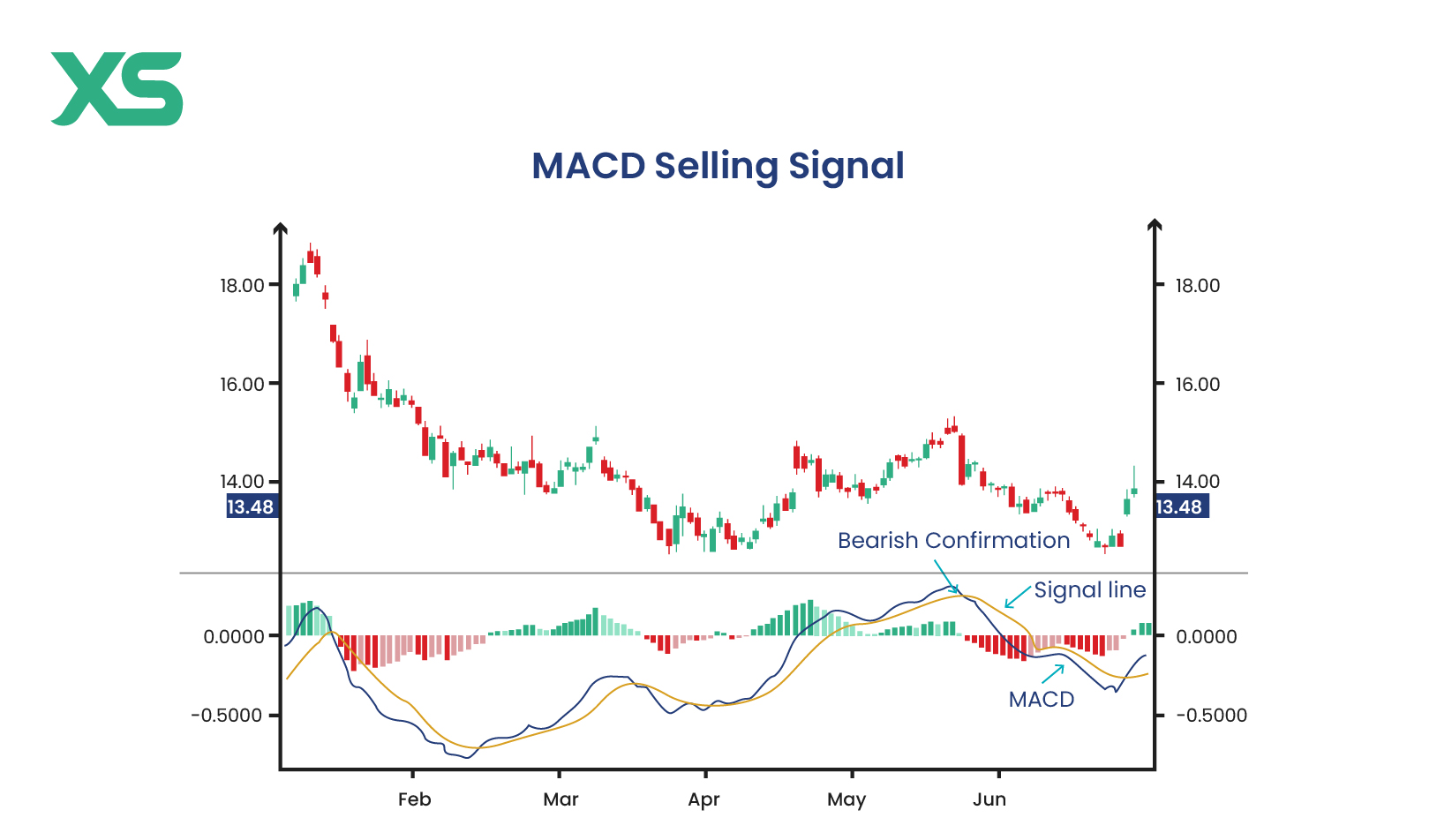

During bearish markets, the MACD helps traders identify and confirm downtrends. A crossover where the MACD line falls below the signal line, combined with negative histogram bars, signals a growing bearish momentum.
This insight allows traders to take short positions or exit long trades.
Putting everything above together, here are some MACD trading strategies.
The crossover strategy is one of the simplest and most widely used approaches in trading.
It focuses on the relationship between the MACD Line and the Signal Line to determine entry and exit points.
Here’s how to apply this strategy:
When the MACD Line crosses above the Signal Line, it suggests that bullish momentum is building, signaling a potential uptrend.
Traders often interpret this as a good time to enter a long (buy) position. For added confidence, look for confirmation such as an increasing MACD histogram or an upward trend in price action.
When the MACD Line crosses below the Signal Line, it indicates bearish momentum, suggesting a potential downtrend.
This is often used as a signal to sell or enter a short position. Similarly, confirm the signal by checking for a declining histogram or downward price movement.
Divergence trading focuses on discrepancies between the MACD indicator and price action, making it a powerful strategy for identifying trend reversals.
Here’s how to follow this strategy effectively.
This occurs when the MACD line forms higher lows while the price makes lower lows. It suggests that bearish momentum is weakening and a trend reversal to the upside may occur.
Traders can use this signal to prepare for a long (buy) position. To act confidently, wait for additional confirmation, such as the MACD Line crossing above the Signal Line or a price breakout from a key resistance level.

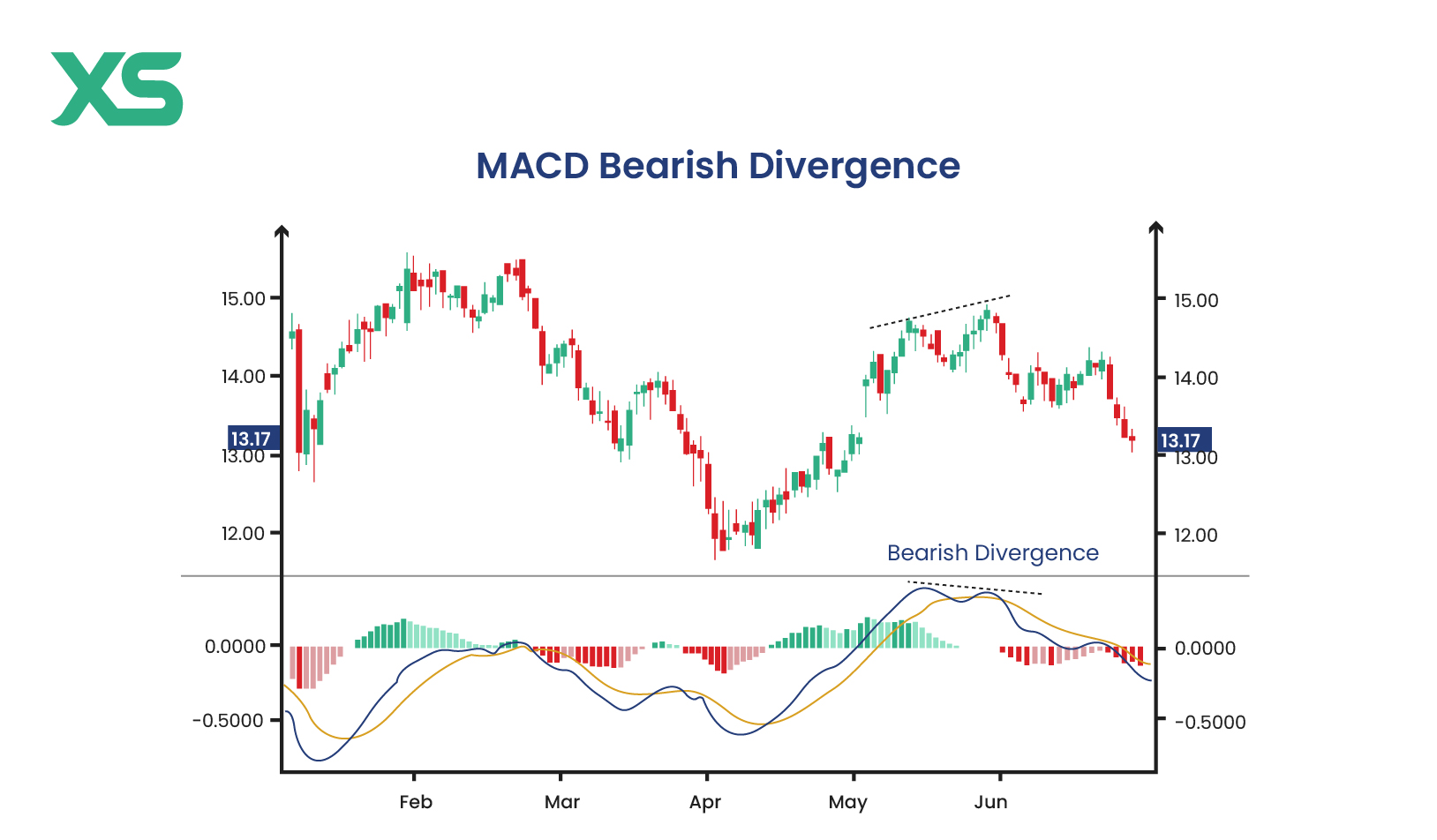

This happens when the MACD Line forms lower highs while the price makes higher highs.
It signals that bullish momentum is fading and a downward reversal might be imminent. Traders often interpret this as an opportunity to short or sell.
Confirm the signal by observing a MACD crossover to the downside or a breakdown below a key support level.
Using the MACD effectively means avoiding common errors. Here are key mistakes traders should watch out for:
Ignoring Divergences: Missing divergence signals can lead to poor timing for entries and exits.
Over-Reliance: Using the MACD alone without other tools often results in misleading signals.
Wrong Timeframes: Failing to adjust settings for day trading or long-term strategies can reduce accuracy.
Misreading the Histogram: Treating it as a direct signal instead of a momentum gauge leads to hasty decisions.
While useful, the MACD has some limitations traders should know:
Lagging Signals: It relies on past price data, so signals can be delayed.
False Signals: In sideways markets, it often gives unreliable readings.
No Overbought/Oversold Data: It doesn’t measure market extremes like RSI does.
Struggles with Long Trends: Extended trends can make MACD signals inconsistent.
The MACD is an important indicator in technical analysis, offering insights into market momentum and trends. By understanding its components and applying the right strategies, you can make more informed trading decisions.
Open an account and get started.
Put your knowledge into action by opening an XS trading account today
The MACD shows momentum and trend direction, helping traders identify potential buy and sell opportunities.
The best timeframes for MACD vary based on your trading style. Day traders often use 5-minute or 15-minute charts, while swing traders prefer daily or weekly charts.
These periods reflect the most common short-term and medium-term trends in the market, as determined by Gerald Appel, the inventor of the MACD indicator.
Gerald Appel created the MACD in the 1970s to analyze the relationship between two moving averages.
